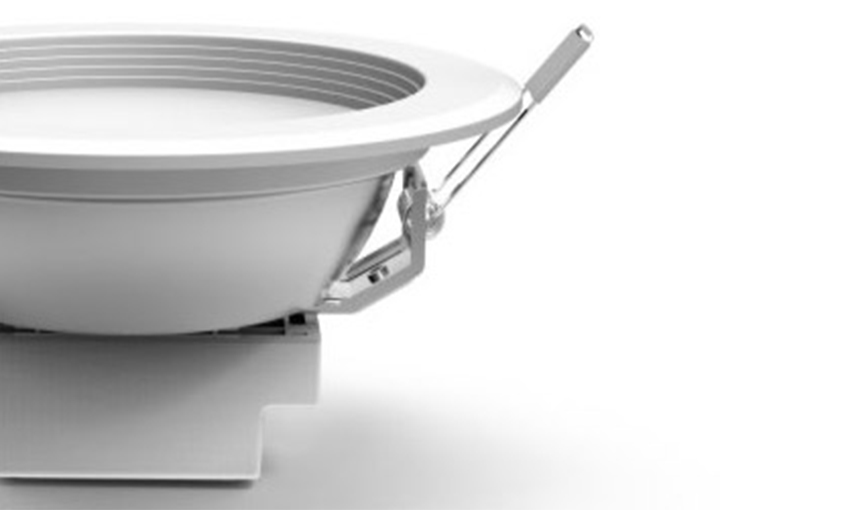

X-Series™ downlights in multiple sizes designed for ease-ofinstall and aesthetics across a number of commercial spaces from office, public space and retail. At only 58mm depth, these luminaires are designed to fit into even the tightest of ceiling voids, with ultra-durable spring loaded mounting clips for a recessed installation.

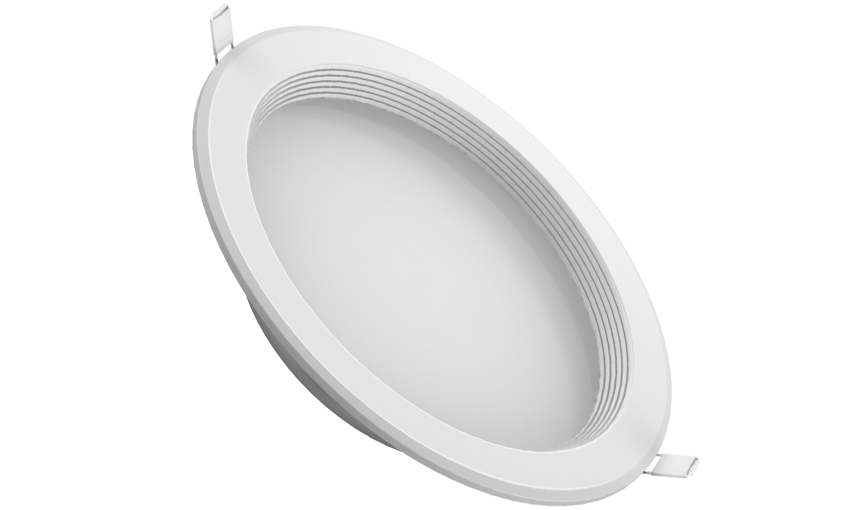

Back-light illumination from SMD2835 powered LED modules across a range of options: 3” / 4” / 6” / 8” complimented by by a RAL white low-profile polycarbonate surround fascia and a low-glare frosted optic.
Unit benefits from external driver with quick-fit connector for first/second-fix installations. Further options of dimmable versions: analogue dimmable 1-10V (-AD), DALI dimming (-DL), DSI (-DSI) and 3-hour emergency self-test (-EM) or auto-test (-AEM) plus LED status indicator light.
Product information
Durable with rated life span of +40,000 hours / No UV or IR emissions / Instant illumination & Flicker free / Conforms with international standards / Environmentally friendly & part recyclable: no mercury or other hazardous materials used / White polycarbonate fascia with aluminium housing / Frosted diffuser / Durable spring loaded mounting clips.
Product Specification
|
Beam Angle |
80° |
|
Luminous Efficacy |
Up to 85lm/W |
|
Input Voltage |
AC 100-280V |
|
High Colour Rendering Index |
Up to 85Ra |
|
LED Type |
Epistar® SMD2835 |
|
Operating Temperature |
-20°C to 50°C |
|
Power Factor |
≥ 0.95 |
