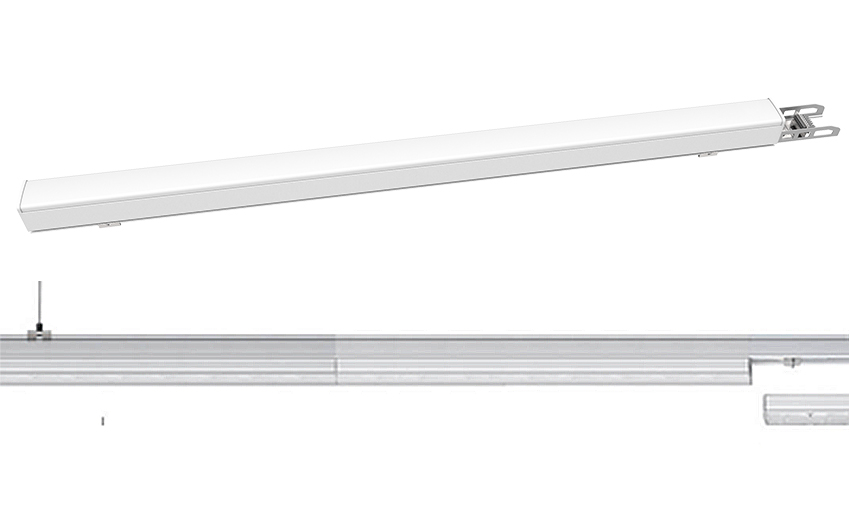

LED continious linear luminaire is designed for continious lines on uninterrupted luminance, such as suspension mounting for supermarket & retail applications. RAL white aluminium suspended in-line rail with end-to-end linking connectors, make this luminaire quick and easy to install, whilst delivering industry leading performance of 120lm/W, able to reach retail optimum lux levels of up to 1000lux at high level mounting (3-6m).
Options of double asymmetric frosted diffuser or direct illumination from individually lensed LEDS, with options of 30˚/60˚/90˚ beam angles making this luminaire highly suited to a wide range of applications and arrangements, across 2ft, 4ft & 5ft options for different lengths of run.

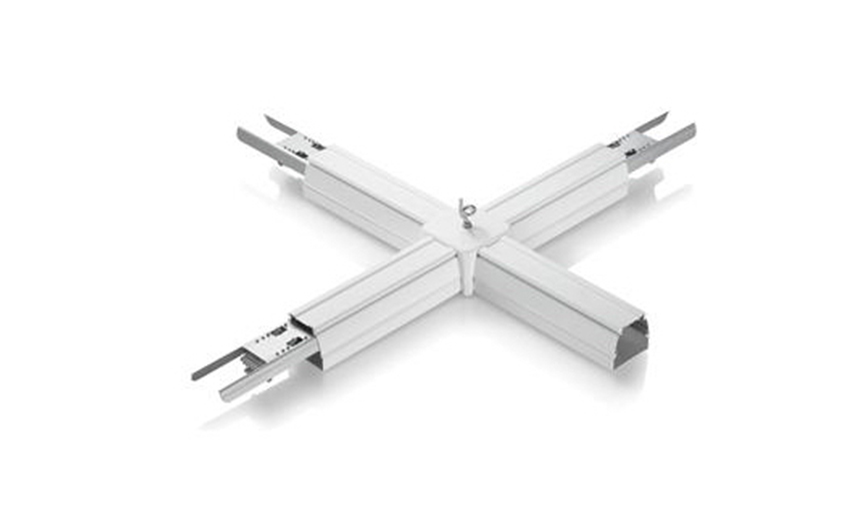

Range of T-Node & L-Node connectors for alternating directions ordered separately (See spec sheet for further details). Further options of dimmable versions: analogue dimmable 1-10V (-AD), DALI dimming (-DL), DSI (-DSI) and 3-hour emergency self-test (-EM) or auto-test (-AEM) plus LED status indicator light.
Product information
Durable with rated life span of +45,000 hours / No UV or IR emissions / Instant Illumination & Flicker free / CE & RoHS international standards / Environmentally friendly & part recyclable: no mercury or other hazardous materials used / RAL White powder coated aluminum housing / Double asymmetric PC frosted diffuser or lensed PMMA optics
Product Specification
|
Beam Angle |
Direct: 30˚ / 60˚ / 90˚ Lensed
Double Asymmetric |
|
Luminous Efficacy |
Up to 120lm/W |
|
Input Voltage |
100-280V AC |
|
High Colour Rendering Index |
>80Ra |
|
Power Factor |
>0.96 |
|
LED Type |
Epistar® SMD LEDs |
|
Operating Temperature |
-20°C to 50°C |
