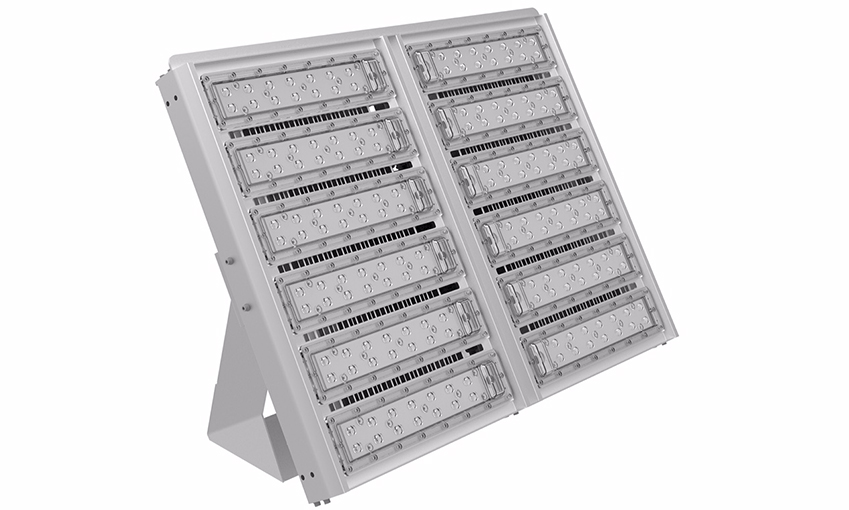

High level mounting & operational constraints of heavy duty industrial sites, docks, sports applications and airports, make maintenance free LED luminaires an ideal choice in lighting specifications. Utilising high powered SMD LED technology from Nichia®, combined with narrow-beam angle optics (30˚ x 30˚ symmetric or 60˚ x 90˚asymmetric distribution patterns), the high mast luminaire is designed for mount heights up to 60m.
With up to 99,000lumens of light, driven by high-performance Meanwell™ HLG series driver, this unit is an ideal equivalent to 2.0kw Metal Halide / 2000W SON replacements. Suitable for exterior applicaitons: IP65 Design, PMMA lens & die-cast aluminium housing with electrophretic RAL Grey coating for environmental protection (salt-tested for 200hours).
Features rear mounted bracket adjustable around 265˚ for direct positioning and a range of optics to choose from. Further benefits include dimmable options: 1-10V (-AD) and remote control gear on application.
Product information
Durable with rated life span of +60,000 hours / No UV or IR emissions / Instant Illumination & Flicker free / CE & RoHS international standards / Environmentally friendly & fully recyclable: no mercury or other hazardous materials used / Heavy duty die cast aluminum housing with RAL Grey electrophretic coating & toughened PMMA cover / Meanwell™ LED Driver
Product Specification
|
Beam Angle |
30° x 30° / -Asym: 60° x 90° |
|
Luminous Efficacy |
Up to 115lm/W |
|
Input Voltage |
AC 110-280V (400V AC on request) |
|
High Colour Rendering Index |
≥ 80Ra |
|
LED Type |
Epistar® SMD3030 LEDs |
|
Operating Temperature |
-20°C to 50°C* |
|
Power Factor |
≥ 0.95 |
Product Gallery
