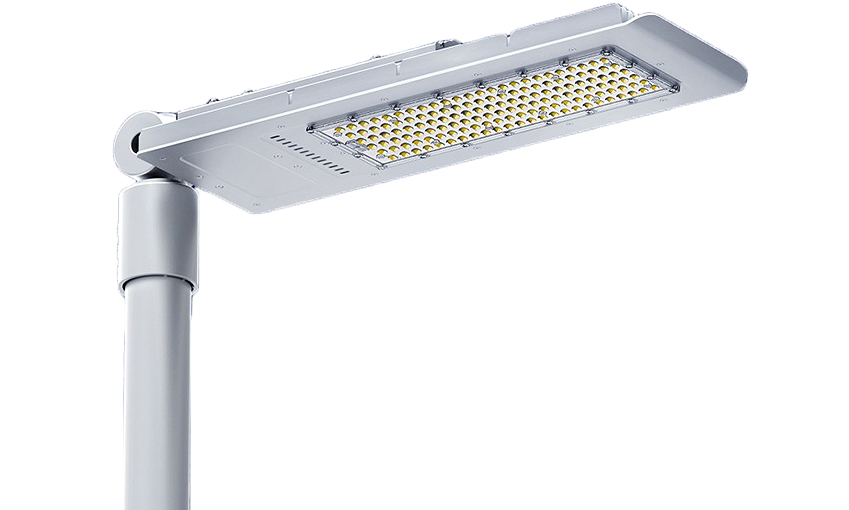

SKY™ series post-top is a minimalistic slimline LED luminaire designed for column/post mounting at heights of 4 – 12m, with a range of sizes across 30W – 150W (3300-16,500lm). IP67 design for exterior environments, with a low-profile, sleek silver anodised aluminium body for harsh weather environments, SKY™ is for urban applications such as car-parks, pathways and pedestrian areas. PMMA optic lens ensures a high degree of uniformity across a range of spaces and reduced light spillage, thus further enhancing this 110lm/W luminaire to give optimum lux levels throughout. Furthermore, SKY™ series luminaire compatiable with standard
mains photocells.
Additional benefits as well as +65,000hour maintenance free performance, include minimal disturbance to nocturnal wildlife to the lack of UV/IR spectrum associated with LED photometric characteristics.

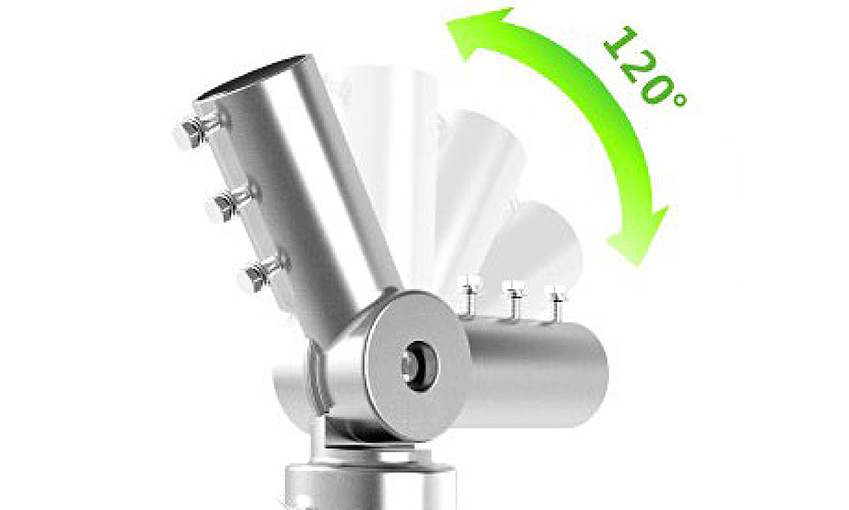

Unit complete with cover plate for both 40mm & 60mm side-entry hence universally compatible. Furthermore, compatible with part number SDPST-A-XX, adjustable street light adaptor for 60 or 70mm columns which can also be used for angle adjustment of luminaire around 120˚.
Product information
Durable with rated life span of +65,000 hours / No UV or IR emissions / Instant Illumination & Flicker free / CE & RoHS international standards / Environmentally friendly & part recyclable: no mercury or other hazardous materials used / Heavy duty die cast aluminum housing & 2mm toughened PMMA optics / Complies with EN60598
Product Specification
|
Beam Angle |
65˚ x 135˚ (30W) 80˚ x 150˚ (40W+) |
|
Luminous Efficacy |
Up to 105lm/W |
|
Mounting Bracket |
Ø40mm/Ø60mm side-entry |
|
Input Voltage |
100-280V AC |
|
High Colour Rendering Index |
Up to 80Ra |
|
LED Type |
Epistar SMD3030 LEDs |
|
Operating Temperature |
-20°C to 50°C |
|
Power Factor |
≥0.96 |
Product Gallery
